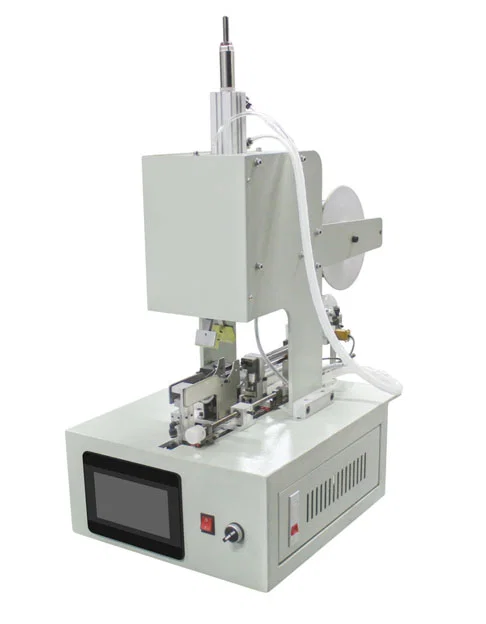

Automata kábeltekercselő és kötözőgép WPM-212L

Detailed description

WPM-212L automatikus tekercselő kötőgép - Nagy kapacitású, félautomata hatékonyság a kábelkötegek gyártásához

Bevezetés:

Bemutatjuk a WPM-212L automatikus tekercselő kötözőgépet, egy nagy teljesítményű, félautomata megoldást, amelyet a kábelköteg-gyártás drámai javítására terveztek. Ez a fejlett tekercselő kötőgép, más néven huzaltekercselő és kötőgép, ötvözi a legmodernebb technológiát a robusztus konstrukcióval, hogy páratlan hatékonyságot és pontosságot biztosítson. Tökéletes a nagyobb kötésátmérők (40-80 mm) kezelésére, ez a gép automatizálja a huzaltekercselési és kötési gépi folyamatokat a kábelek széles skálájánál, a váltakozó és egyenáramú tápvezetékektől az adat- és videokábelekig, valamint a sodrott kötegekig. Tapasztalja meg a termelékenység jelentős növekedését, és szüntesse meg a kézi munka terhelését ezzel a nélkülözhetetlen géppel.

Features for High-Efficiency Wire Harness Processing:

This semi-automatic Coiling tying machine is engineered with features that prioritize throughput, precision, and ease of use:

• Automated Winding and Binding in One Operation: The coiling tying machine employs advanced technology and precision manufacturing to automate both winding and tying in a single, seamless process. It efficiently processes AC cable, DC cable, data wire, video cable, and other electric wires, as well as twisted bundles, optimizing workflow and reducing cycle times.
• Handles Large Tie Diameters: Specifically designed as a Coiling tying machine to accommodate larger tie diameters, ranging from 40mm-80mm, making it ideal for bundling thicker cables and wire harnesses.
• Versatile Wire Compatibility: Processes a wide range of wire types, including AC cables, DC cables, data lines, video cables, and other electric wires, as well as twisted bundles, offering broad application versatility within wire harness and cable assembly. Wire heads can be configured on one side or both sides for added flexibility.
• Significantly Increased Productivity: Experience a dramatic improvement in efficiency. This wire coiling and binding machine operates three to four times faster than working by hand, enabling higher production volumes and faster turnaround times.
• Eliminates Manual Labor and Reduces Strain: This automated Coiling tying machine removes the need for laborious manual winding and binding. Say goodbye to physically demanding tasks, finger strain, and repetitive motion injuries, creating a safer and more ergonomic work environment.

Characters for User-Friendly Operation and Intelligent Control:

The WPM-212L wire coiling and binding machine is characterized by its intelligent controls, user-friendly interface, and reliable performance:

• PLC or Controller with Touch Screen Display: The machine is intelligently controlled by PLC or controller and touch screen display, providing an intuitive and modern interface for easy setup, parameter adjustments, and process monitoring.
• Customizable Winding Parameters: The speed of the winding cable and the number of circle spare can be set up randomly according to users’ requirements via the touch screen. This allows for precise customization of coiling parameters to suit different wire types, coil diameters, and application-specific needs.
• Real-time Production Quantity Tracking and Carton Quantity Setting: This advanced Coiling tying machine can display the actual production quantity at any time on the touch screen, enabling real-time monitoring of output. Users can also set up the quantity of each carton, with the machine automatically alarming and shutting down when the target quantity is reached for efficient batch production management.
• Integrated Error Warning System: Features a built-in warning system for enhanced safety and operational efficiency. When something is wrong during work, the machine warns operators immediately, ensuring prompt attention to any issues and minimizing downtime, maintaining continuous production flow.

Wide Range of Applications Across Wire Harnessing and Cable Assembly:

This high-capacity wire coiling and binding machine is ideally suited for a wide array of industries and applications, particularly those involving larger diameter wire harnesses:

• Wire Harness Manufacturing (especially for larger harnesses)
• Cable Assembly Production
• Automotive Wiring Systems
• Industrial Equipment Cabling
• Appliance Manufacturing
• Telecommunications Infrastructure

Technical Specifications for Robust and Reliable Automation:

• Model No: WPM-212L Coiling tying machine, wire coiling, and binding machine
• Machine Type: Automatic Coiling and Tying Machine (Semi-Automatic, High-Capacity)
• Key Functions: Coiling tying machine, wire coiling and binding machine (Semi-Automatic, Large Tie Diameter)
• Tie Diameter Range: 40mm-80mm (Large Diameter Capacity)
• Winding Range: 50-300mm (Adjustable Coil Diameter)
• Twist Shapes: Round, Long, 8-Shape (Flexible Tie Configurations)
• Available Wire Types: AC Cable, DC Cable, Data Line, Video Cable, and other electric wires (Versatile Wire Compatibility)
• Length Accuracy: ±(0.002*L) mm (High Precision)
• Productivity: 66-75 times/min (High Throughput)
• Noise Level: <70dBA (Low Noise Operation)
• Electrical Connection: AC 220/110V/50/60HZ (Global Compatibility)
• Operation Interface: Bilingual (User-Friendly)
• Machine Dimensions: 500mm * 300mm * 400mm (Compact Benchtop)
• Weight: 65kg (Robust and Stable)
• Package: Wooden Case (Secure Shipping)

Conclusion:

Invest in the WPM-212L Automatic Coiling Tying Machine to revolutionize your wire processing, especially for larger diameter wire harnesses. This high-capacity and efficient wire coiling and binding machine, also a user-friendly Coiling tying machine, delivers unmatched productivity, precision, and user-friendliness, making it the ideal solution for maximizing your efficiency and product quality. Contact us today to learn more about how the WPM-212L can transform your wire harnessing and cable assembly operations and elevate your manufacturing capabilities!
