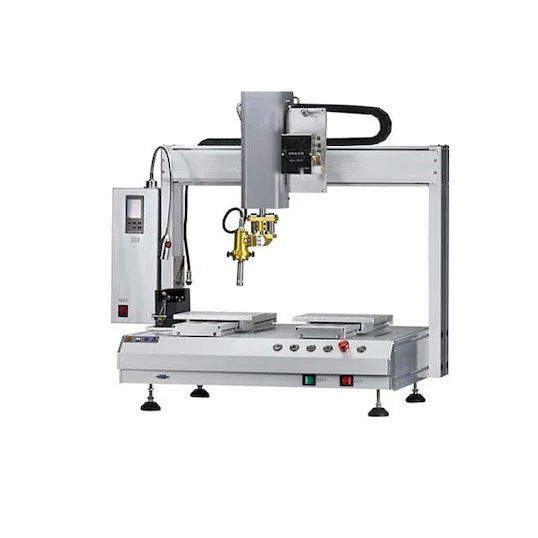

Automatikus forgóasztalos forrasztógép - WPM-805

Name: Automatikus forgóasztalos forrasztógép - WPM-805
Brand: JINGWEI
SKU: WPM-805
Availability: InStock
Rating: 5 (1 reviews)

Termékmodell: WPM-805
Műszaki adatok
Modell szám: WPM-805
Méretek: 840.5*585*815 mm
Munkaterület: 500*300*100 mm (X*Y*Z)
Súly: 55 kg
Maximális terhelés: X/Y/Z-5/5/3 kg
Kijelző: LCD
Motor rendszer: Lépésmotor
Maximális sebesség: X.Y 500 mm/sec, Z 300 mm/sec
Teljesítmény: 150 W
Hőmérséklet tartomány: 50-500 °C
Kompatibilis fájlformátumok: CAD, CorelDRAW
Ajánlatkérés

rotary soldering machine, Screw Locking Assembly Machine, Find Complete Details about Desktop Automatic Suction Lock Screw Machine Multi-axis Automatic Screw Locking Assembly Machine, Automatic Screw Driving Machine, Screwing Robot, Automatic Screw Fix Locking Machine
1. Automatically soldering for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, LED, toy, etc.
2. Desktop type, can be placed on the production line.
3. Optional Full English marked machine body, to be international application.
4. Double Y-axis type, automatic working alternatively, saving the time of placing an object.
5. Perfect soldering program, with spot/line/circle soldering function.
6. Can set the length of the Tin, pre-heat time, soldering time, and height backward. etc parameter. With auto cleaning soldering tip function.
7. Interface both English and Chinese is available.
8. Fixture and tooling available

Dimension: 840.5*585*815mm
Working platform: 500*300*100mm(X*Y*Z)
Weight: 55kg
Max loading: X/Y/X-5/5/3kg
Display: LCD
Motor system: Step motor
High speed: X.Y 500mm/sec, Z 300mm/sec
Power: 150W
Temperature: 50-500 C
Compatible files: CAD, CorelDRAW
